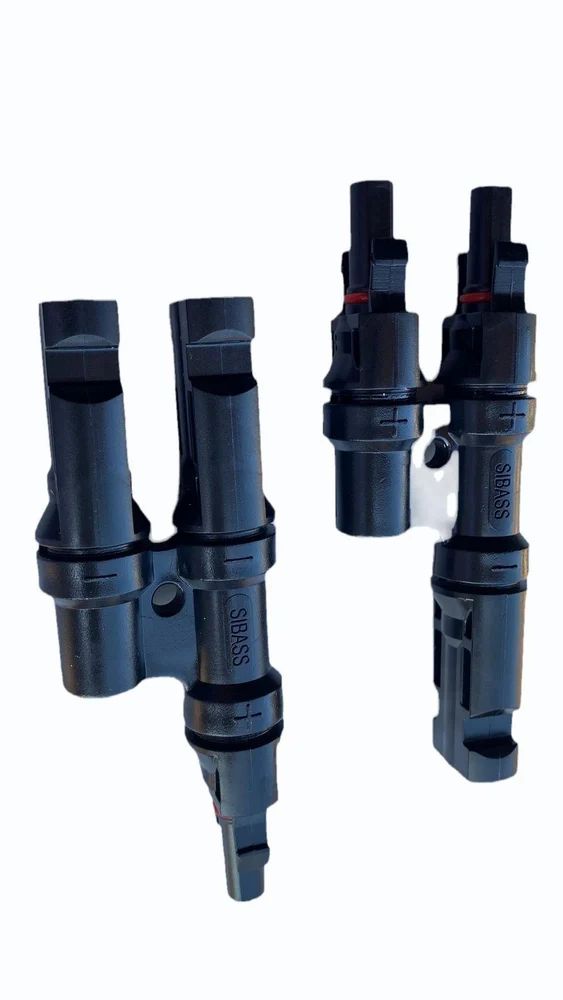

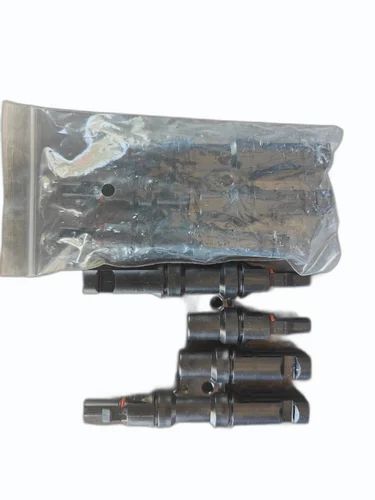

Solar Mc4 Branch Connector
In stock
Description
Material Copper
Usage/Application Solar System
Size 1 inch
Connection Male
Voltage 1500VDC
Current 50A
Temperature Range 40 C TO + 90 C
Color Black
Standards EN 50521 : 2008
Packaging Type Box
Connector Type Y Type
Country of Origin Made in India
CONTACT RESISTANCE < 0.5m
DEGREE OF PROTECTION IP67
ONTACT MATERIAL COPPER WITH TIN PLATED
INSULATION MATERIAL PPO
LOCKING SYSTEM SNAP-IN
FLAME CLASS UL94-HB / UL94-VO
CABLE SIZE 2.5 TO 6 MM
PROTECTION CLASS II
APPLICATION CLASS CLASS A
MC4 connectors are single-contact electrical connectors commonly used for connecting solar panels. The MC in MC4 stands for the manufacturer Multi-Contact (now Stäubli Electrical Connectors) and the 4 for the 4 mm diameter contact pin.
